Launchpad Desktop Notifications

The Neptune Launchpad includes a framework for notification display created in the ABAP back end. Enable notifications in the launchpad settings to make the launchpad fetch notifications on a set interval. Call the function module /NEPTUNE/NOTIF_SEND to send notifications to launchpad users using their SAP username.

Launchpad Configuration

Check the "Enable Notifications" setting in the launchpad configuration.

Create Notification

Notifications can be created from within your custom ABAP logic by calling the function module /NEPTUNE/NOTIF_SEND.

Function Module Tables

  • IT_USERS: List of users who should receive the notification

Function Module Display Parameters

  • HEADER: Notification title

  • TEXT: Notification text

  • ICON: Any icon found in the Neptune Icon Explorer, like:

    • sap-icon://message-information

    • sap-icon://message-warning

    • sap-icon://message-error

  • ICON_STATE: Notification icon state. Any values from the enumerations sap.ui.core.ValueState and sap.ui.core.IndicationColor, like:

    • Error

    • Warning

    • Success

    • Information

    • None

Function Module Action Parameters

It’s possible to open a Neptune application on the notification click. Start parameters will be parsed on to Neptune applications in string format. If a URI encoded JSON object is used in the start parameters, a proper JavaScript object will be accessible in the application onInit and onBeforeDisplay event handlers.

The open action will be determined based on the following parameters and priority.

Semantic Navigation

Semantic navigation can be configured in the tile settings.

  • SEMANTIC_OBJECT: Semantic object set in tile configuration

  • SEMANTIC_ACTION: Semantic action set in tile configuration

Navigation Object

If a navigation object is used, the application will be opened with a corresponding launchpad navigation object and added to the launchpad active application section.

  • NAV_LOAD: ABAP boolean value, set to ABAP_TRUE to enable the navigation object action

  • APPLID: Application to open when notification is clicked

  • NAV_TITLE: Navigation item title

  • NAV_INFO: Navigation item information

  • NAV_ICON_SRC: Navigation item icon. Any icon found in the Neptune Icon Explorer

  • NAV_ICON_IMG: Navigation item image. Will be used instead of the icon in menus that support images.

Application ID

  • APPLID: Application to open when notification is opened

Dialog

If no semantic object, navigation object, or application is provided, a dialog is opened with the notification info when the notification item is opened.

  • TEXT_LONG: Long text to display in dialog

Deprecated Function Module Parameters

  • COUNTER

  • ICON_IMAGE

  • PRIORITY

  • NAV_BACKGR_CLR

  • NAV_BACKGR_SHADE

  • NAV_CUSTOM_CLR

  • URL_EXTERNAL

  • URL_WINDOW

  • URL_HASH

Result

Notifications will be fetched by the Neptune Launchpad on the set interval. A notification icon in the launchpad right header area will indicate the number of unread notifications.

A platform specific native notification event is fired. If the OS/platform supports the native notification, the user will be notified even if the Neptune Launchpad is not in focus. A click on the native notification will open the Neptune Launchpad and if proper semantic navigation is configured, the action application with action start parameters will be opened.

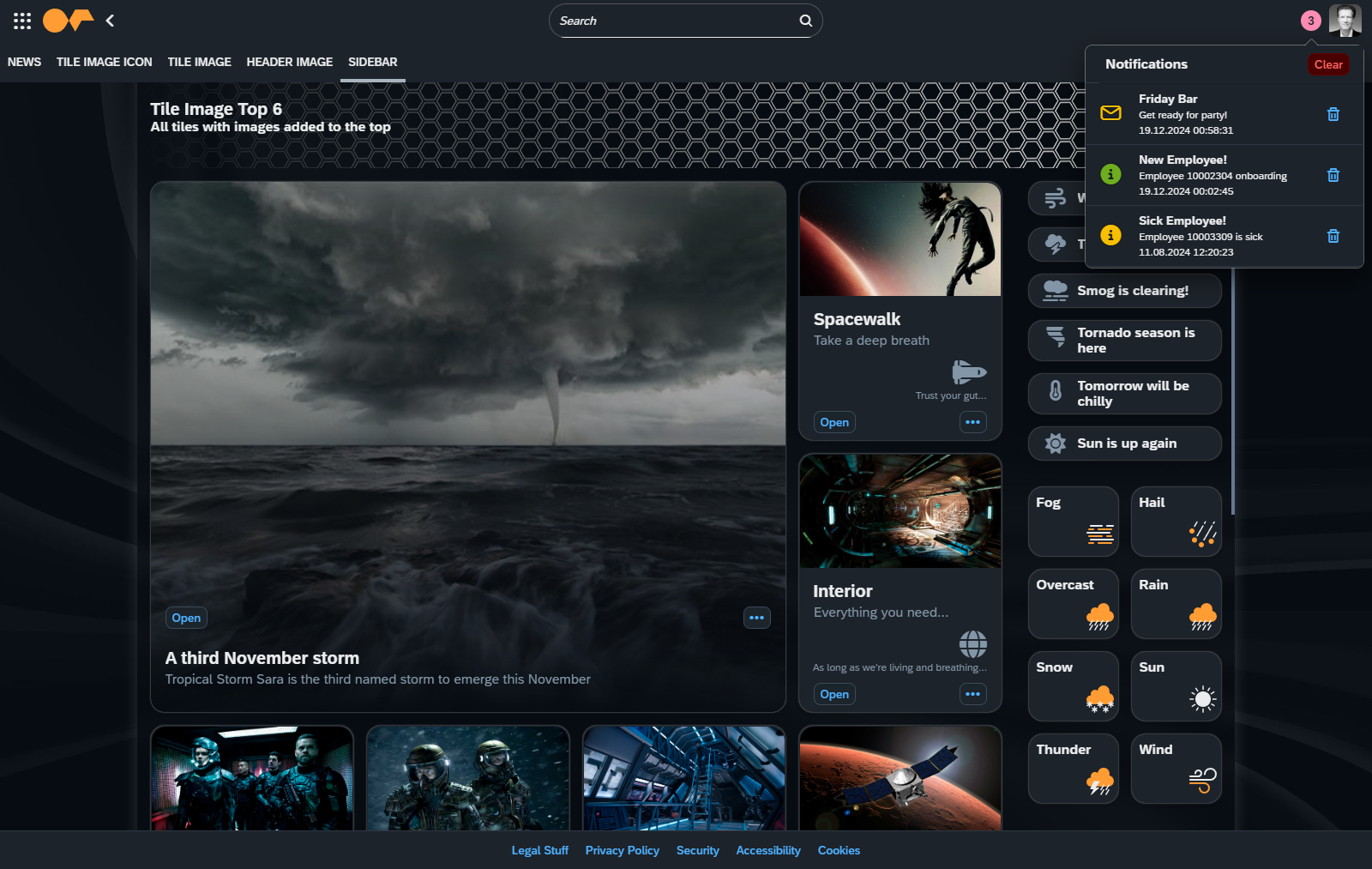

launchpad notifications

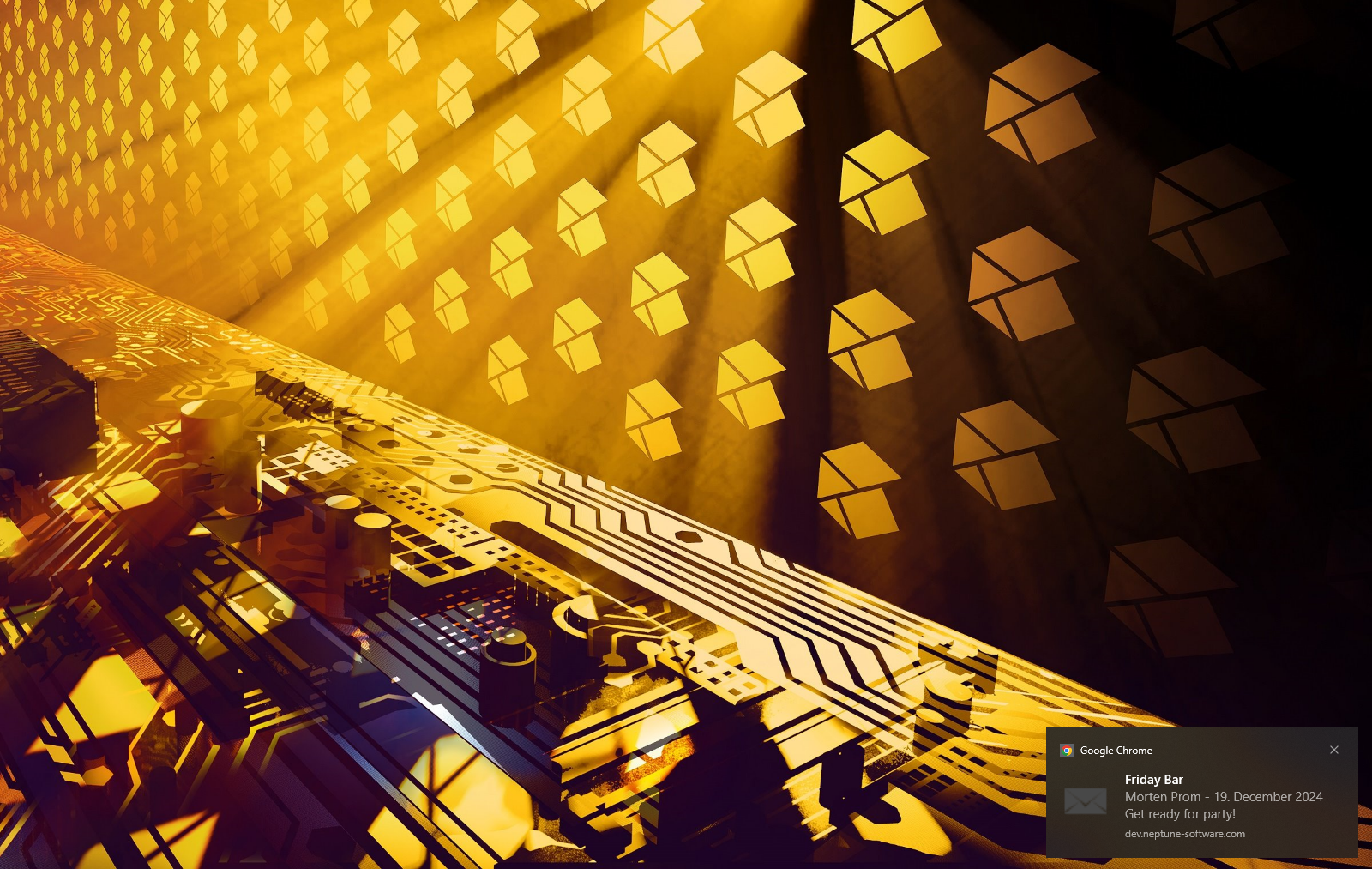

Native Windows notification generated by the Google Chrome browser.

launchpad notification native
