Launchpad settings

You can customize various launchpad settings, including, for example, entering a display name and description, configuring a custom login screen for users, configuring a PIN code screen for users, enabling an external chatbot functionality for the launchpad, and more. The following launchpad setting descriptions guide you to create a launchpad with settings that correspond to your specific business requirements.

General tab

Enter general settings for your launchpad.

General section

You can enter relevant names and descriptions, and assign a relevant development package for the launchpad.

General settings table
Setting name Setting description

ID

Technical ID automatically assigned to the launchpad after creation

Name

A meaningful name that refers to the launchpad artifact name within the system and is displayed in the URL path of the launchpad.

Package

Selection of development packages that you assign to the launchpad

Launchpad Application

Defines the standard underlying framework application neptunedxp_launchpad to run an active end-user launchpad from Neptune DXP - Open Edition.

Title

The display title of the launchpad displayed to users on the user’s browser on runtime. The launchpad title is displayed to end users on the launchpad login screen, when enabled.

Description

The display description of the launchpad. The launchpad description is displayed to end users on the launchpad login screen, when enabled.

UI5 section

You can use the UI5 section to load the relevant underlying OpenUI5 or SAPUI5 framework for the launchpad.

UI5 settings table
Field Purpose Available Options/Examples Notes/Constraints

Version

Determines which version of the OpenUI5 framework to load.

  • 1.120 (Recommended) - Long-term Maintenance, Q4/2030

  • 1.108 - Long-term Maintenance, Q4/2030

  • 1.71 - Long-term Maintenance, Q4/2030

  • Latest UI5 - CDN - Not recommended for production

  • Custom UI5 - CDN

For continuous compatibility, Neptune always recommends the most recent, long-term maintenance OpenUI5 framework version.

SAP UI5 Module Path

Allows specifying a custom path to an external SAPUI5 library.

If your launchpad includes tiles running applications from an SAP system, those apps might need SAP-specific UI5 libraries. Provide the path to the SAPUI5 library’s resource file in the field. The path must point directly to the sap-ui-core.js file.

Cookies section

You can enable a cookie confirmation dialog with relevant title and messaging for the use of cookies on the launchpad.

Cookies settings table
Setting name Description

Show Cookies Dialog

Enables the display of a cookies dialog for the launchpad

Title

Specifies the cookies dialog message title that appears when the cookies setting is enabled

Message

Specifies the cookies dialog message body that appears when the cookies setting is enabled

Blackout section

You can block the launchpad and enable the display of a blackout message informing the user that the launchpad is blocked.

Blackout settings table
Setting name Description

Enable Blackout

Enables the blackout setting for a launchpad

Title

Specifies the blackout message title that appears to the user when a user tries to access the launchpad when the blackout setting is enabled

Message

Specifies the blackout message body that appears to the user when a user tries to access the launchpad when the blackout setting is enabled

Single App Launchpad section

You can choose to display only one application on your launchpad. All other applications and tiles that might have been selected are hidden when a setting in this section is selected.

Single App Launchpad settings table
Setting name Description

Start Application

Selection of defined UI5-based applications made in the App Designer in the system

Start Web Application

Selection of defined web applications in the system

You can incorporate a custom footer for the launchpad that can include interactive buttons and other required controls defined as an application artifact in the App Designer.

Launchpad Footer settings table
Setting name Description

Launchpad Footer

Selection of defined custom footers made in the App Designer using the custom sap.m.HBox, including interactive buttons for the footer with sap.m.Button custom components.

Customization tab

You can customize the display of individual display elements and settings of the launchpad.

Accessibility section

You can enable accessibility settings so that users that require enhanced accesibility also can access and navigate the launchpad.

Accessibility table
Setting name Description Default

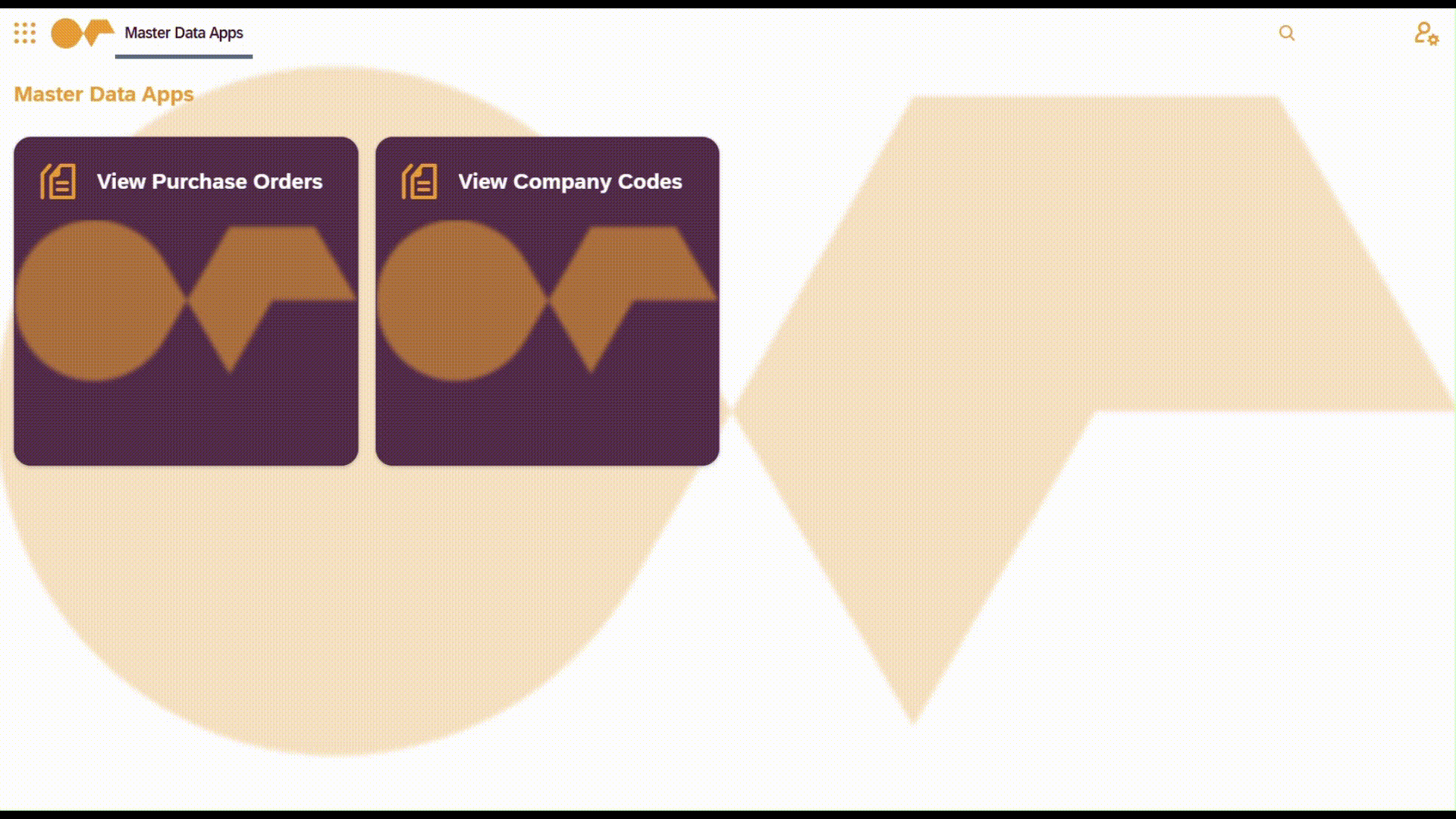

Show Focus Indicator

For enhanced visibility, when a user selects Tab on a keyboard of an active launchpad in the user’s browser, an outline renders to highlight around the active tile or application of the launchpad. When a user continues to select Tab, the outline renders on the next tile or application in navigation. When a user selects Spacebar, the active tile or application opens.

Show focus indicator

Yes

Settings section

Settings table
Setting name Description

Disable Splitview

Disables the Splitview setting, and hides it from display in the settings pane of the launchpad.

Disable Customizations

Disables application-specific sizing and screen management on the main menu, hiding the following settings from display when right-clicking a tile/tile group/application:

  • Edit Screen

  • Resize

  • Move to another screen

  • Remove App

  • Manage Screens

Configure customizations for each individual device, e.g. mobile, tablet and desktop separately

When enabled, Neptune DXP - Open Edition retrieves layout and formatting information for the launchpad on the basis of browser settings and form factor, for example, to influence dimension display on a desktop, tablet, or mobile phone respectively

Disable redirecting user to home screen when hash navigation fails during navigation

Does not redirect the user to the launchpad home screen when a user goes to an invalid URL when navigating in the launchpad

Client Request Timeout (in seconds)

Defines the time in seconds to be reached when a client request is terminated and a process is still not completed

Enable Launchpad and Tile Trace

Enables the launchpad and tile trace option to analyze launchpad and tile usage in the Launchpad Trace tool

Enable Push Notifications

Enables push notifications for the launchpad when Firebase is enabled so that the launchpad prompts the user to accept notifications. Enables Project ID and App ID for further configuration.

Project ID

Defines the project ID you produce when you enable Firebase (learn more about the project ID in Firebase)

App ID

Defines the application ID you produce when you enable Firebase (learn more about the application ID in Firebase)

Launchpad Header section

Launchpad Header settings table
Setting name Description

Hide Launchpad Header

Hides the header toolbar of the launchpad

Hide the Launchpad Header Back Button

Hides the back button of the header toolbar of the launchpad

Show Launchpad Title in Launchpad Header

Displays the title of the launchpad in the header toolbar menu next to the inserted launchpad logo and/or back button

Show Active App Title in Launchpad Header

Displays the active application title of the launchpad in the header toolbar menu next to the inserted launchpad logo and/or back button

Hide Launchpad Search

The launchpad search bar is disabled by default for single app launchpads.

Main Menu Display section

In the Main Menu Display section, you can choose whether the main menu of the launchpad is displayed in the header.

Main menu display settings table
Setting name Description Default

Show Main Menu in Header Toolbar

Displays main menu items in the header toolbar of the launchpad

Yes

One-Line Top Menu

Displays all header toolbar elements, for example, a company logo and further shell bar button names, on one line

No

Do Not Display Submenus on Hover

Disables the display of individual main menu items in the header toolbar of the launchpad when a user hovers over them

Yes

Pin Main Menu to Left Side Bar

Pins the main menu to the left side navigation of the launchpad. On small screens, the main menu slides out to view

No

Active Apps Display for Desktop section

Active apps display settings table
Setting name Description

Pin Active Apps to Left Side Navigation

Pins active apps to the left side navigation of the launchpad for easy access

Show Active Apps in Header Toolbar

Displays the active app in the header toolbar of the launchpad

Highcharts section

Highcharts settings table
Setting name Description

Disable Loading of Highcharts

Disables loading of integrated Highcharts in the launchpad

HTML Header tab

You can add scripts, stylesheets and other relevant content, that should be included in the launchpad HTML header area.

Do not add launchpad-specific CSS to the HTML Header tab. Instead, use the dedicated Global Style tab and the Global Style tool. CSS that you add in Global Style is automatically added to the bottom below all SAPUI5 library code.

Header content dependent of OpenUI5

SAPUI5 files are loaded asynchronously. The OpenUI5 framework adds content dynamically to the end of the HTML Header tab.

Start with an attachInit event handler to start the process when you have uploaded all UI5 library files. Get the header tag and add your files to the header. Your files appear below the UI5 files and the content is loaded after the UI5 content.

<script>
    sap.ui.getCore().attachInit(function() {
        var head  = document.getElementsByTagName("head")[0];
        var script  = document.createElement("script");
        script.type = "text/javascript";
        script.src = "https://unpkg.com/axios/dist/axios.min.js";
        head.appendChild(script);
    });
</script>

Stylesheet example:

<script>
    sap.ui.getCore().attachInit(function() {
        var head  = document.getElementsByTagName("head")[0];
        var link  = document.createElement("link");
        link.rel  = "stylesheet";
        link.type = "text/css";
        link.href = "/neptune/public/application/neptune_launchpad_standard/css/app.css";
        head.appendChild(link);
    });
</script>

Authentication tab

You can manage access to the launchpad according to company-specific authentication protocols, and customize the login screen of the launchpad for end users.

Login section

You can configure the display of a login screen through which a user must authenticate themselves according to the relevant authentication identity provider to access the launchpad.

Login settings table
Setting name Description

Default Provider

Defines the default identity provider for the login screen for the user to authenticate themselves. The options you can select from are based on the authentication configurations created in the System Settings tool.

Custom Login Title

Defines the custom title displayed on the login screen of the launchpad

Custom Login Subtitle

Defines the custom subtitle displayed on the login screen of the launchpad

Custom Login App

Defines the custom login application from the system to use as the login screen functionality for the launchpad. Neptune DXP - Open Edition provides a standard login application that is used by default.

Password Reset Email

Selection of email templates in the system that can contain password reset instructions in the email body for the user to sign in to the launchpad

Hide Login Selection

If you have created multiple authentication configurations in the System Settings tool for login to the launchpad, this option hides the dropdown menu for the login selection so that only the authentication configuration selected from Default Provider is displayed to select.

Hide Local Login Selection

If you have created multiple authentication configurations in the System Settings tool for login to the launchpad, this option hides the local login selection from the dropdown menu

Enable Anonymous Access to Launchpad

Enables anonymous access for a launchpad and its related applications. When you enable anonymous login for users, the provider of the launchpad generates a new user object for the session.

For any applications that you add to the launchpad that have anonymous access enabled, you also need to enable the anonymous access setting in the App Designer.
Neptune supports this feature if enabling anonymous access is part of your license scope.

External Users section

Administrators can restrict self-registration to selected host domains. Users with an email address of a specified domain can request an activation code to sign in to the launchpad. See Enable self-registration in a launchpad.

External users settings table
Setting name Description

Allow Self-Registration of Users

Enables self-registration in the launchpad for users

Email pattern

Defines which host domains are allowed for self-registration, for example, @exampledomain.com

Assign Roles

Selection of roles in the system to assign to new users

Assign Security Groups

Selection of security groups in the system to assign to new users

Assigning roles or groups helps distinguish between different user groups. For example, you can assign a role with read-only access to self-registered users and assign a different role to users who used another registration method.

Activation Code Email

Selection of email templates in the system that can contain the activation code to sign in to the launchpad in the email body

Language tab

Language section

You can customize language settings of the launchpad according to multilingual requirements.

Language settings table
Setting name Description

Default Language

Defines the language in which the login screen appears when the user access the launchpad. If you do not select any option, the launchpad applies the default language of the browser. When the user is signed in, the language set in the user profile is used. If the user’s language is not among the supported languages set in Users Can Select These Languages, the default language set in Default Language is used.

Fallback Language

Defines which fallback language to use, if the default language of the browser is not one of the supported languages from Default Language. When the user is signed in, the language set in the user profile is used. If the user’s language is not among the supported languages set in Users Can Select these Languages, the selected fallback language is used.

Users Can Select These Languages

Defines which languages the launchpad supports. If no languages are selected, all available languages from selection are supported by default. When the user is signed in, the language set in the user profile is used. If the user’s language is not among the selected languages, the language set in Default Language is used.

PWA tab

Progressive Web App section

You can specify if the launchpad can serve as a progressive web application (PWA).

Progressive web app settings table
Setting name Description

Enable PWA

Specifies that the launchpad is a PWA. Enables the sections Autolock, PIN, and Progressive Web App for further configuration. Shows that the launchpad is a PWA in the Enable PWA column in the list of available launchpads in the Launchpad tool.

Autolock section

You can enable an autolock function for the PWA if a user is inactive.

Autolock settings table
Setting name Description

Enable

Enable autolock setting for the PWA.

Autolock on Idle in Seconds

Number in seconds that must be reached on idle for the launchpad to return to the sign-in screen.

PIN section

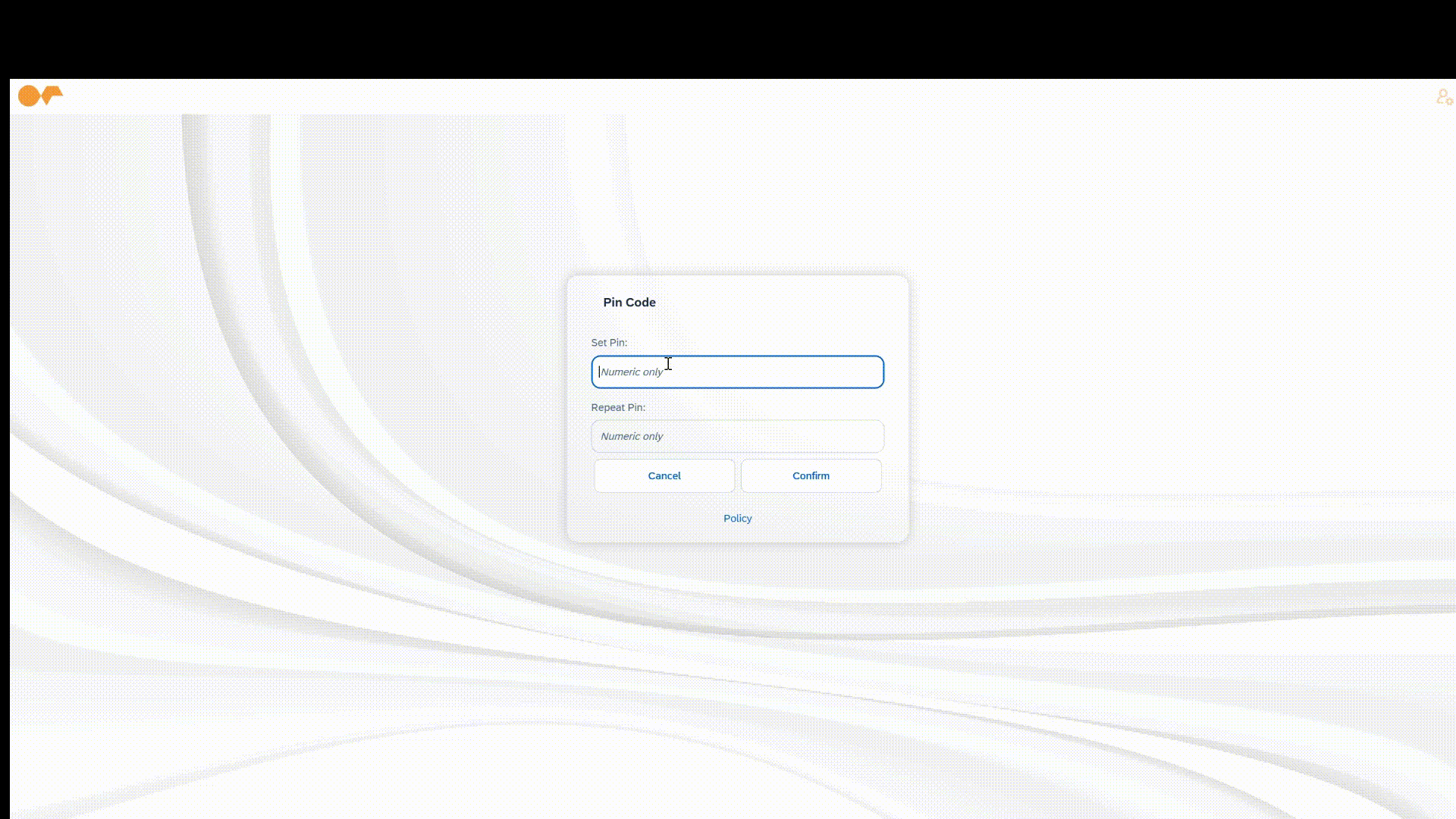

You can enable a PIN for the PWA. When a user signs in to the PWA, the PWA prompts the user to create and enter a PIN to access the launchpad of the PWA.

Enable PIN
PIN settings table
Setting name Description Default

Enable PIN

Enables the PIN setting for the launchpad. Enables the fields PIN Length, PIN Tries, PIN Key Iterations, and Enable Passwordless Login with Public Key Authentication for further configuration.

No

PIN Length

Defines the number length of the PIN that the user can create when the user wants to access the launchpad. Contains the following options for selection:

  • 4

  • 6

  • 8

4 numbers

PIN Tries

Defines the maximum number of tries that a user can enter the PIN for before automatic signout. Number selection range between 1 and 10.

5 tries

PIN Key Iterations

Defines the number of PIN key iterations used to encrypt the PIN according to the CryptoJS.PBKDF2 key derivation function.

This setting controls the strength of the derived key. Use a high number to resist brute-force attacks. The maximum is 600,000 iterations.

  • NIST Recommendation (2020): At least 10,000 iterations for PBKDF2.

  • OWASP Recommendation (2023): At least 310,000 iterations depending on the threat model.

Changing the number of iterations invalidates all current user sessions by producing a different key.

40,000 PIN key iterations

Enable Passwordless Login with Public Key Authentication

If a user’s device supports passwordless login with public key authentication, like, for example, authentication via biometric fingerprints or Face ID, enabling this setting allows users to log in to the launchpad securely without needing to enter a password. Instead, they can authenticate with a device, fingerprint, or security key, making accounts safer and easier to access. This modern approach protects against hacking and phishing.

No

Progressive Web App section

You can select display options for your PWA, including display mode, display icons or screenshots from the Media Library for different end devices, and influence the color scheme.

Progressive web app settings table
Setting name Description

Display Mode

Defines the display for the PWA for the end device of the user. Applies a meta tag to the display mode descriptor in the Web App Manifest. You have the following options:

  • Browser

  • Full Screen

  • Standalone

Icon for All iOS devices

Display icon for PWA with a recommended image size of 540px x 540px for all iOS devices

Small Icon fo Android devices

Display icon for PWA with a recommended image size of 192px x 192px for Android devices

Large Icon for Android devices

Display icon for PWA with a recommended image size of 512px x 512px for Android devices

Desktop Vertical Screenshot Image

Display screenshot for PWA with a recommended image size of 720px x 540px wide resolution for desktop

Desktop Horizontal Screenshot Image

Display screenshot for PWA with a recommended image size of 720px x 540px narrow resolution for desktop

Theme Color

Lets you select a custom color from the color picker for the theme of the PWA

Background Color

Lets you select a custom color from the color picker for the background of the PWA

Global Style tab

Global Style settings table
Setting name Description

Global Style

Selection of defined custom CSS styling artifacts from the Global Style tool to apply to the launchpad.

Layout tab

You can select launchpad layouts to control the appearance of the launchpad, for example, for a light and/or dark appearance.

Tile Group tab

You can select one or more tile groups to display in the launchpad.

Role tab

You can select a user role from the Role tool to the launchpad.

Enhancement tab

You can implement enhancement spots to use in launchpads and mobile clients. Enhancement spots are used to modify the standard Neptune DXP - Open Edition code to fit your specific requirements. Launchpad enhancement spots are grouped into the following categories:

  • Authentication: Authentication event-based enhancement spots

  • Common: Common event-based enhancement spots

  • Events: Tiles and launchpad event-based enhancement spots

  • Mobile/PWA: Enhancement spots only applicable for mobile

  • Push Notifications: Notification event-based enhancement spots

Chatbot tab

You can enable a chatbot in the launchpad. When enabled, the chat appears in the bottom right of the launchpad. You can choose either a chatbot from SAP (SAP Conversational AI) or IBM (IBM Watsonx Assistant).

You must have a corresponding account to connect to the chatbot.
SAP Conversational AI settings table
Setting name Description Example

Channel ID

Defines the data-channel-id parameter in UUID format in the generated web client script after creating a channel in SAP Conversational AI

f7c9a2b4-3e1a-4d92-b706-5cde871f4d88

Token

Defines the data-token parameter in the generated web client script after creating a channel in SAP Conversational AI

a7y2kcuwpjhtzmgf9rb0iqe5lxd3onv681s4

IBM watsonx Assistant settings table
Setting name Description Example

Integration ID

Defines the configuration options object parameter integrationID of the web chat in UUID format.

c1a73f4e-29b9-4bd5-bc3a-5f8e2e1d7f42

Service Instance ID

Defines the configuration options object parameter serviceInstanceID to identify the service instance ID of the assistant that hosts your web chat integration in UUID format

e5d9428b-cc8d-4902-91a1-6bf4f7d1a3e7

Region

Defines the data center where you create your integration

us-south
